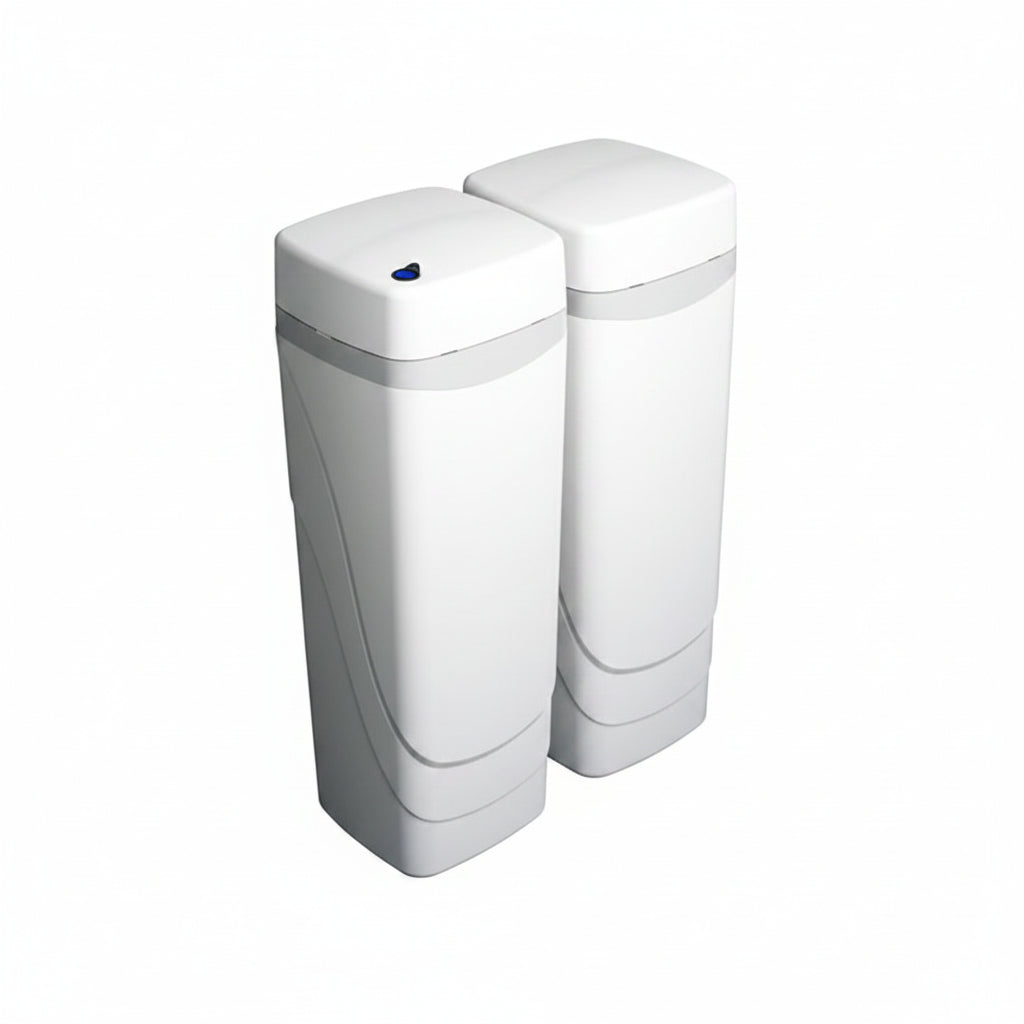

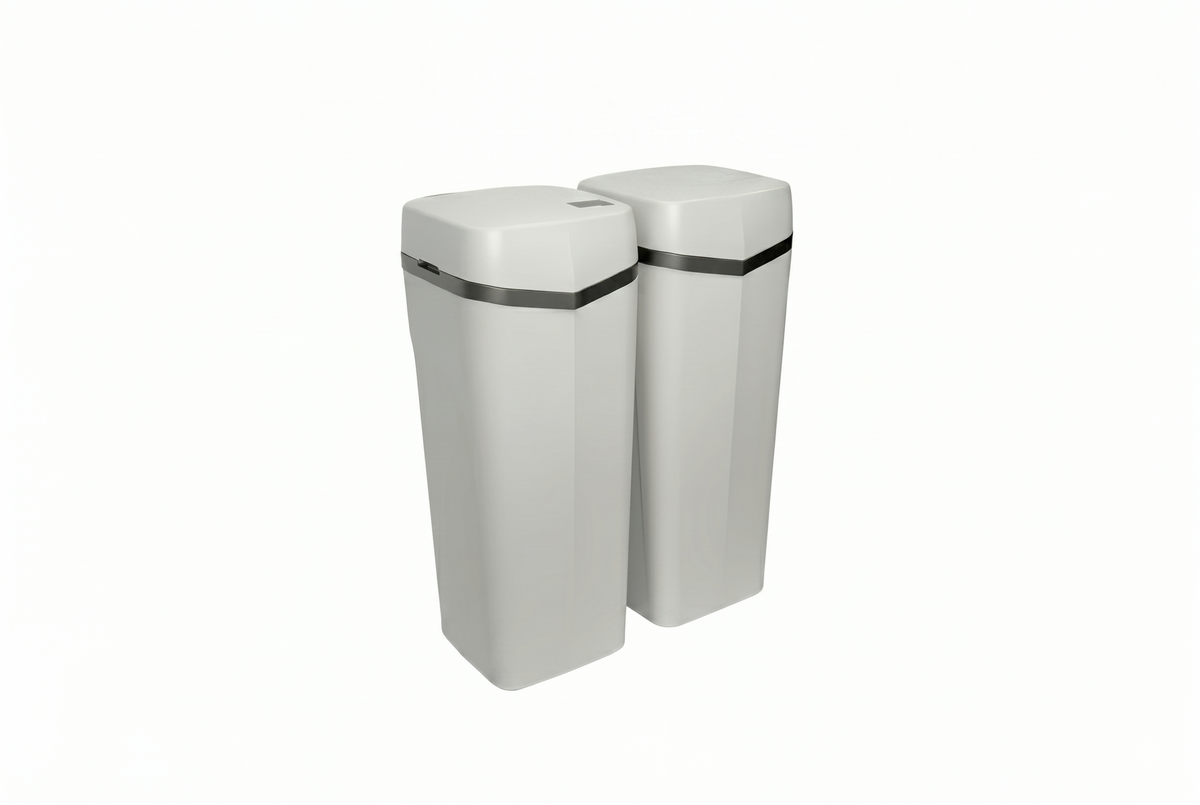

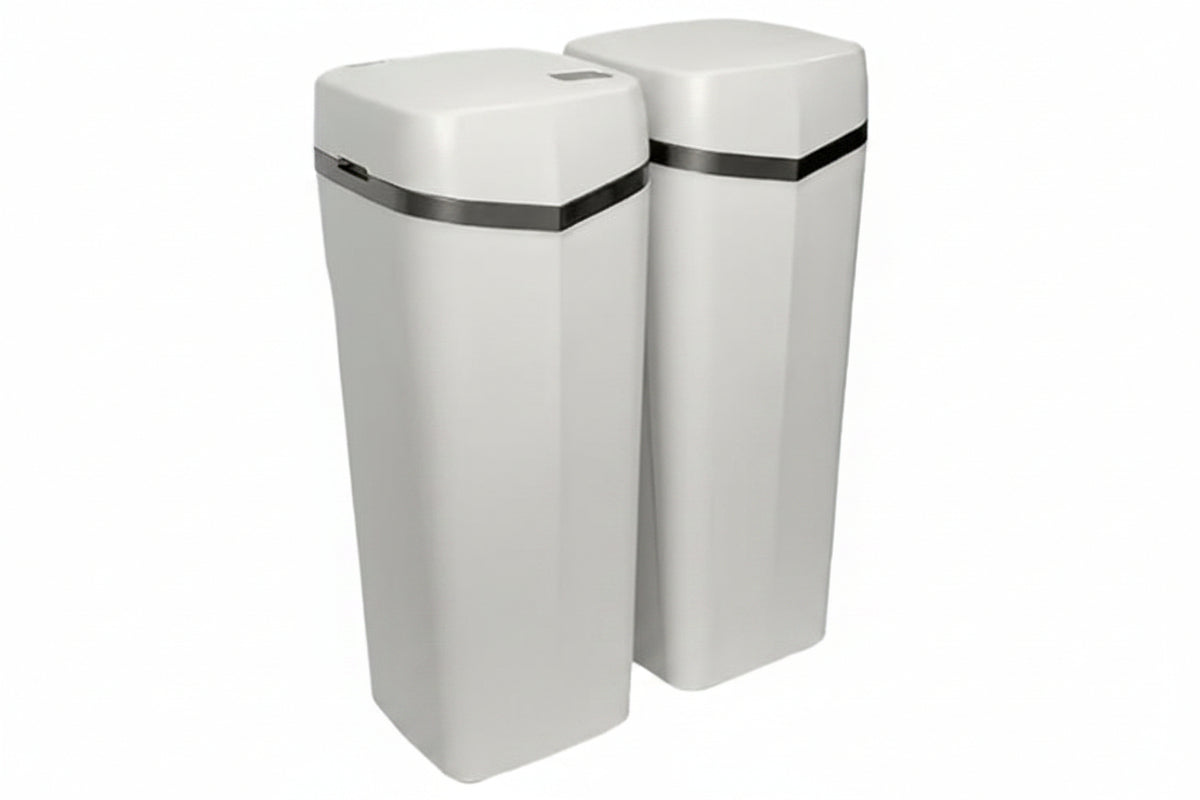

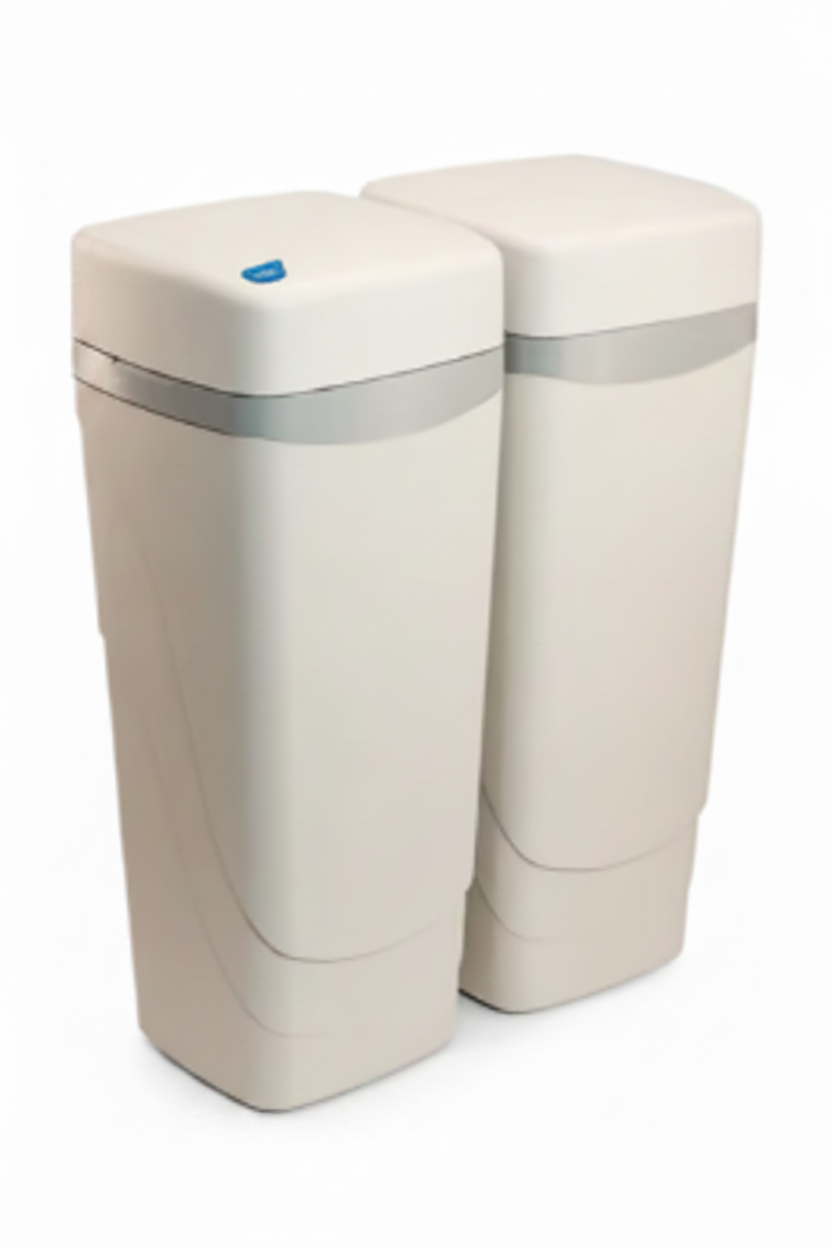

WaterMax® is the world’s most efficient water treatment system, with 9 U.S. Patents awarded. The design features a multi-compartment media tank which offers more resin capacity and has a flexible media configuration.
There are three compartments in the system design:
ULTRA-FIL/CHLOROSTAT – treats dirt, sediment, hardness and iron, and is a self-cleaning filter. It is used to reduce the odour and the taste of chlorine in the water. It also prolongs the life of the resin bed, so it does not need a replacement filter or maintenance.
ULTRA-CLEAR – is a filter which provides carbon filtration and eliminates the taste of organic matter, chlorine and odours.
ULTRA-SOFT – uses vacuum packed, high-capacity fine mesh resin to provide maximum softening and contains the Bacteriostat – a self-cleaning filter which prevents bacteria growth in the resin bed.
- Salt and water-saving technology built in for maximum efficiency
- Low-profile compact design – perfect for modern homes and tight spaces
- Convenient easy-fill salt cabinet for simple maintenance
- High-quality materials and components for durability and reliability
- Absolute brining system for consistent, effective softening
- Multi-function controller – operates on demand mode or time-forced regeneration
- Patented Capacity Guard™ technology – ensures you never run out of softened water
- Low maintenance operation – simply refill salt when needed
- Patented packed bed mineral tank removes the need for a second tank
- Compatible with both tablet salt and block salt, with block salt offering easier handling than heavy traditional salt bags
- Height: 533 mm (20.5 in)
- Width: 292 mm (11.5 in)
- Depth: 470 mm (18.5 in)
- Max Compensated Hardness–gpg (mg/L) : 35 (600)
- Media type and amounts: Chlorostat (2.0 lb), Filter Media.(1.5 lb), Fine Mesh Resin 0.4 cu. ft (11.3 L)
- Salt usage (used per regeneration) / Capacity: 1 lb / 5,200 grains (0.5 kg / 365 grams)
- Salt usage (used per regeneration) / Capacity: 2 lb / 8,300 grains (0.9 kg / 540 grams)
- Salt usage (used per regeneration) / Capacity: 3 lb / 10,400 grains (1.4 kg / 670 grams)
- Minimum / Maximum water and ambient temperature–oF (oC): 40-120 (4- 49)
- Mineral tank size–in. (cm): 9 I.D. X 16 (22.9 I.D. X 40.6)
- Flow Rate @ 15 psi (1.0 bar) drop – gpm (L/min): 6.0 (22.7)
- Flow Rate @ 25 psi (1.7 bar) drop** – gpm (L/min): 8.7 (32.9)
- Maximum flow rate to drain during regeneration (backwash)–gpm (L/min): 2.4 (9.1)
- Water Pressure (min–max psi) (bar): 20–120 (1.4–8.3)
- Minimum water flow required–gpm (L/min): 2.4 (9.1)
- Controller type: 5 Button
